Home > Stainless Steel > Stainless Steel Perforated Tubing

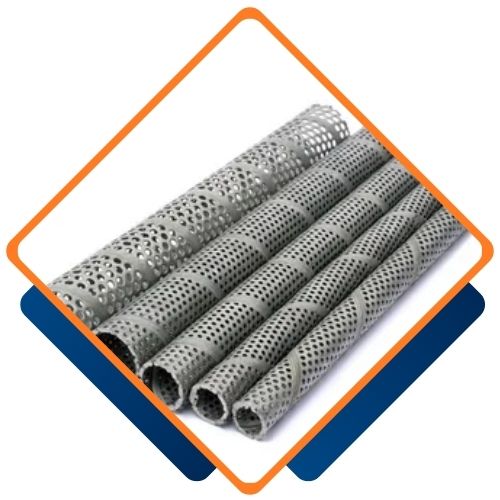

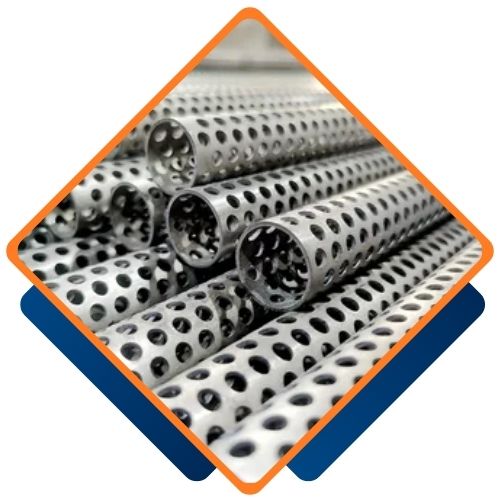

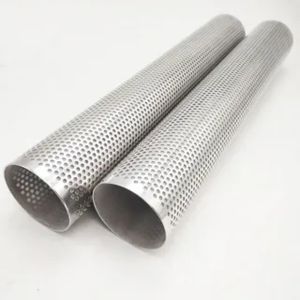

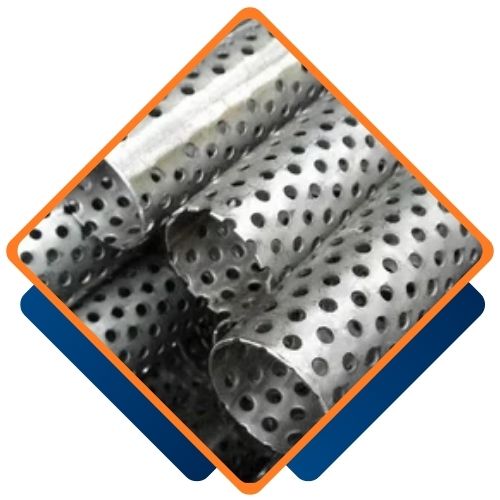

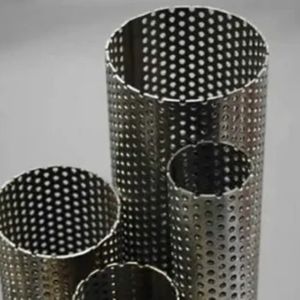

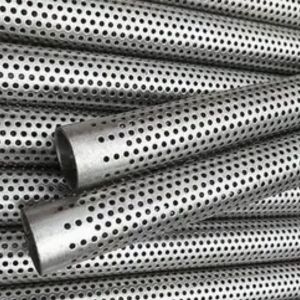

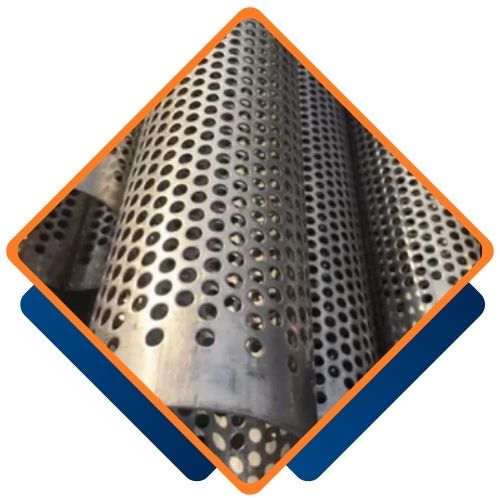

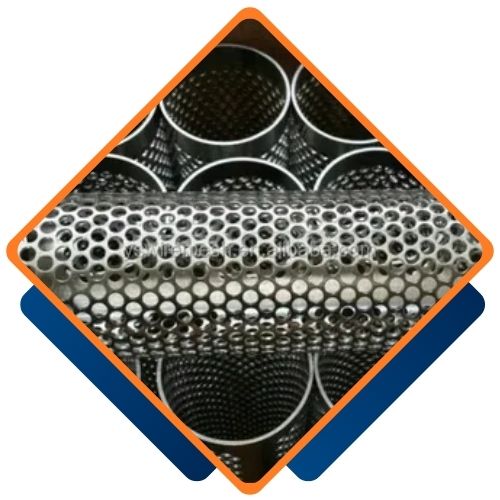

Bosega Pipes and Tubes stands out as a top-notch manufacturer and supplier of Stainless Steel Perforated Tubing in Cape Town, South Africa. They offer high-quality tubing solutions that are built for exceptional strength, precision, and durability. The Stainless Steel Perforated Tubing from Bosega is crafted with evenly spaced holes or slots, allowing for the smooth passage of fluids, gases, or sound while keeping its structural integrity intact. Thanks to advanced fabrication and finishing techniques, these tubes boast impressive corrosion resistance, precise dimensions, and sleek finishes, making them perfect for a variety of applications in industries like industrial, architectural, filtration, and acoustics.
This type of tubing is mainly made up of iron, chromium (16–20%), nickel (8–12%), along with trace amounts of molybdenum, manganese, and carbon, depending on the specific grade, such as 304, 304L, or 316L. This unique blend gives it outstanding resistance to corrosion and oxidation, along with high tensile and yield strength, ensuring long-lasting durability. The perforations are meticulously designed to maintain consistent mechanical properties, guaranteeing top-notch performance even under fluctuating pressure and temperature conditions in filtration and structural systems.
| ASTM | ASTM A249, A269, A270 |
| OD. | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes stainless steel welded tubes also available |
| Thickness | 0.2mm to 15mm |
| Hole size | 3mm dia on a 6mm pitch |
| Opening diameter | 0.2mm to 100mm |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS201 |
| Finish | BA Finish inside and outside, Perforated finish inside and outside |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Mill Test Certificate | EN10204 3.1 |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL Perforated TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304L | S30403 | 1.4306 |
| 316 | S31600 | 1.4436 |
| 316L | S31603 | 1.4404 |
Choosing Stainless Steel Perforated Tubing from Bosega Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Bosega Pipes and Tubes, one of the largest suppliers of Stainless Steel Perforated Tubing in Cape Town, South Africa, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Perforated Tubing to meet your specific requirements. Our team at Bosega Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bosegapipes.co.za.
Stainless Steel Perforated Tubing finds its way into various applications, including filtration, exhaust systems, acoustic control, and architectural designs. It’s particularly well-suited for industries like chemical, petrochemical, marine, and food processing, where resistance to corrosion and longevity are essential. Additionally, it’s used in heat exchangers, water treatment systems, and decorative projects, providing both functionality and aesthetic appeal while ensuring a long service life. Its blend of strength, versatility, and ability to withstand harsh environments makes it a go-to choice for both industrial and commercial applications.
